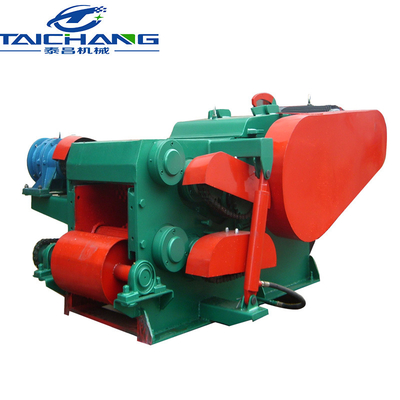

Forestry equipment hydraulic wood chipper equipment making machine factory price

Parameters of wood chipper

Details Images:

The wood chip machine is composed of a machine base, a knife roller, an up-and-down feeding mechanism, a feeding device, a hydraulic buffer system and an electrical control system.
1.The machine consists of a base, a knife roller, an up-and-down feeding mechanism, a feeding device and a liquid
Composed of pressure buffer system and electrical control system. The feeding device is divided into two types: belt conveyor or vibration feeder; the belt conveyor is driven by the lower feeding roller motor
2. The rotation direction of the upper feeding roller is the same as that of the knife roller, and the rotation direction of the lower feeding roller is opposite to that of the knife roller. The teeth are staggered to allow debris to be cleaned up.
3. Knife roller is the working part of wood chip machine, and is welded by steel plate. It has good rigidity and moment of inertia, and has been tested for dynamic balance.
4. The cutting process is completed by the flying knife and the bed knife, and the distance between the flying knife and the bed knife should be kept at 0.5-1mm.
5. The chip size after cutting is about 30mm
6. Suitable for large diameter wood, branches, boards, etc.

Feeding roller

The feeding mechanism on the wood chip machine is composed of an upper feeding roller base, a feeding roller, a feeding roller shaft, a swing shaft, a speed reducer and the like. The feeding mechanism under the wood chip machine is composed of a feeding roller, a support roller, a feeding roller shaft, and a reducer.
The feeding roller of wood chip machine has a larger diameter, heavier weight and coarse teeth on the surface, so that the raw materials can be compacted and brought into the cutting position at a uniform speed to ensure the length and quality of the chip. The upper and lower feeding roller teeth are staggered from each other. So that debris is cleaned up.

Wood chip machine base

The wood chip machine base is welded with high-strength steel plates, which is the supporting foundation of the entire machine. The support of the bottom knife seat of the wood chip machine is welded with the base to integrate the bottom knife seat. Wood chipper bottom knife passes the knife block with specially manufactured high-strength bolts
It is fixed on the bed holder. The bottom knife seat can be freely drawn out through the hole on the side of the wall plate of the machine seat, and it is fixed on the machine seat by two clip keys. The wood chips cut by the wood chip machine fall through the holes of the screen and are discharged from the bottom of the machine base. Excessive wood chips can be broken again by the crushing rod installed on the machine base.

Production Process:

Application:
The cutting materials of the drum wood chip machine are mainly small-diameter wood, wood cutting residues (branches, branches, etc.) and wood processing residues (skin, slat, log core, waste veneer, etc.). It can also be used to cut non-wood raw materials (such as hemp, reed, bamboo, etc.). "Taichang" brand TCGX series drum type wood chip machine is a special equipment for the production of wood chips. It is widely used in the preparation section of particleboard fiberboard and papermaking and other wood chip production plants. The small drum wood chip machine is also the best equipment for preparing raw materials in the factory laboratory.

Our customers
Our products exported to Europe, North America, South America, Southeast Asia and Africa markets, received unanimous praise from foreign customers.

Company strength

Jinan Taichang Transmission Machinery Co.Ltd was founded in 2004 with registered capital of 8 million Yuan(USD 1,400,000.00),plant building area of 40000 square meters .More than 200 employees, including 10 senior engineers, 16 mechanical designers, 20 technicians, and is a research, development, production, operating as one of the modern machinery manufacturing enterprises. Strong technical force, advanced production technology, perfect after-sales service. Our company is the largest professional manufacturer with all types and large production in the domestic same industry.

Our After-Service
We are committed to providing customer satisfaction with professionalism.Customer satisfaction is our best word and the biggest publicity.

Packing&Shipping
We work with professional logistics companies to provide you with more professional logistics services.
